Touchproof input boxes
for small BRAINBOX® Amplifiers.
for small BRAINBOX® Amplifiers.
|
Touchproof input boxes for small BRAINBOX® Amplifiers. |
There are three types of Input Boxes for connecting EEG electrodes with standard Touchproof connectors to the small BRAINBOX® EEG amplifiers. One is a clip-on type that is fixed over the amplifier, resulting in a very compact module with a size of 9.5 x 11 x 3 cm. The second type is a separate box connected by a flat cable to the multipin input of the amplifier. The third type has a holding slot for the EEG-Amplifier and can be mounted on a microphone stand. |
|
 |
 |

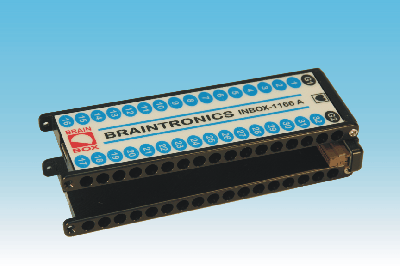

INBOX-1166A |

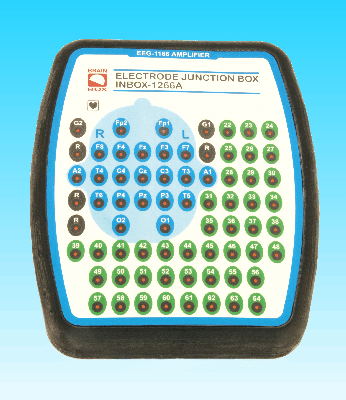

INBOX-1266A |
All INBOXES are passive components forming the connection between Touchproof electrode connectors and the multipin connector. All types automatically encode the Amplifier for the proper Device number, depending of the channel range of the INBOX. |
|
INBOX Cross reference table.
Inbox Characteristics |
||||||||
| For amplifier type | ||||||||
| Stackable for smallest size possible | - |
 |
- |
- |
|
- |
- |
- |
|
Detachable from amplifier by cable |
- |
- |
- |
- |
- |
- |
|
|
| Mountable on microphone stand | - |
- |
|
- |
- |
|
- |
- |
| Large box connectable via flat cable | |
- |
- |
|
- |
- |
- |
- |
| Holding slot for amplifier | - |
- |
|
- |
- |
|
- |
- |
| Touchproof EEG sockets | 64 |
64 |
32 |
32 |
32 |
32 |
32 |
32 |
| Touchproof DC sockets | - |
- |
8 |
8 |
8 |
8 |
8 |
8 |
| Touchproof Gnd sockets | 2 |
2 |
4 |
18 |
26 |
11 |
26 |
12 |
| G1/G2 sockets | 2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
| BRAINBUS address coding possibilities | 4 |
4 |
4 |
2 |
2 |
2 |
2 |
- |
| Channel Identification type A (Address 1) | 1-64 |
1-64 |
Fp1 - Pz |
Fp1 - Pz |
Fp1 - Pz S1 - S11 DC1 - DC8 |
Fp1 - Pz S1 - S11 DC1 - DC8 |
Fp1 - Pz S1 - S11 DC1 - DC8 |
Fp1 - Pz S1 - S11 DC1 - DC8 |
| Channel Identification type B (Address 2) | 65-128 |
65-128 |
Fp1 - Pz 22 - 64 |
Fp1 - Pz S1 - S11 DC1 - DC8 |
Fp1 - Pz S1 - S11 DC1 - DC8 |
Fp1 - Pz S1 - S11 DC1 - DC8 |
- |
- |
| Channel Identification type C (Address 3) | 129-192 |
129-192 |
Fp1 - Pz 22 - 64 |
- |
- |
- |
- |
- |
| Channel Identification type D (Address 4) | 193-256 |
193-256 |
Fp1 - Pz 22 - 64 |
- |
- |
- |
- |
- |
