INBOX-1066.

General.

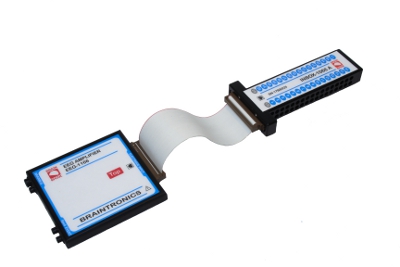

The INBOX-1066 is a separate input box for the BRAINBOX® mini EEG Amplifiers. It is connected to the EEG-1166 via a flat cable. The INBOX-1066 offers more flexibility than the clip-on INBOX-1166, like in a setup with a switchbox between the patient and the amplifier for electrical epilepsy stimulation with implanted electrodes.

The INBOX-1066 is available with encoding for 4 BRAINBUS Device addresses (channel ranges).

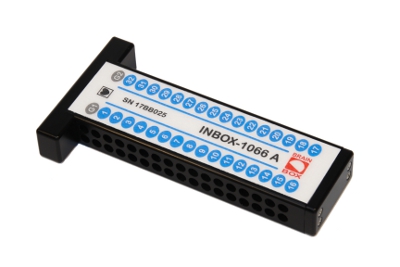

  INBOX-1066 top side without flatcable

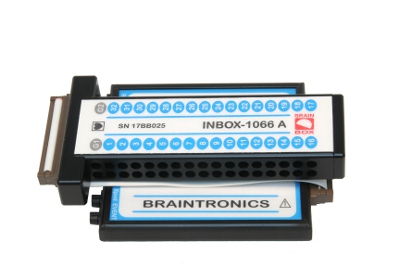

INBOX 1066 top side with flatcable connected to the box



INBOX-1066 specifications.

Inbox
Separate box connectable via flat cable
Touchproof EEG sockets
64
Tochproof G1 - G2 sockets
2
Touchproof Gnd sockets
2
BRAINBUS address coding possibilities
4
Channel Identification type A (Address 1)
1-64
Channel Identification type B (Address 2)
65-128
Channel Identification type C (Address 3)
129-192
Channel Identification type D (Address 4)
193-256

Code number INBOX-1066.

Address type
Channel range
order number
INBOX-1066-A
1 - 64
17BB/A
INBOX-1066-B
65 - 128
17BB/B
INBOX-1066-C
129 - 192
17BB/C
INBOX-1066-D
193 - 256
17BB/D

Code number 68-pin flat cable for INBOX-1064.

Address type
Length
order number
68-pin flat cable
15 cm
68-pin flat cable
1 mtr

Cross reference table INBOX


Braintronics address
