INBOX-1266.

General.

The INBOX-1266 is used with the small ambulatory EEG amplifier EEG-1166 to convert it in a system for stationary routine EEG use.

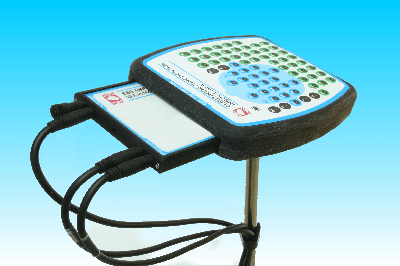

The EEG-1166 amplifier is inserted in the top of the INBOX-1266 as shown on the photogragh. With the optional mounting block type 28BA, the INBOX-1266 can be fixed on a standard microphone stand.

For one patient, you use the INBOX-1266A. The 2nd, 3rd and 4rd patient connected to the same PC uses resp. INBOX-1266B, INBOX-1266C and INBOX-1266D

The photo at the bottom right show the INBOX-1266 top rear and bottom side.




Electrode Junction Box  INBOX-1266A
Electrode Junction Box  INBOX-1266A



INBOX-1266 specifications.

Inbox
Holding place for amplifier in the box
Vinkje
Mountable on microphone stand
Vinkje
Touchproof EEG sockets
64
Touchproof Gnd sockets
4
G1/G2 sockets
2
BRAINBUS address coding possibilities
4
Channel Identification type A (Address 1)
Fp1 - Pz
22 - 64
Channel Identification type B (Address 2)
Fp1 - Pz
22 - 64
Channel Identification type C (Address 3)
Fp1 - Pz
22 - 64
Channel Identification type D (Address 4)
Fp1 - Pz
22 - 64

Code number INBOX-1266

Address type
Channel range
order number
INBOX-1266-A
Fp1 - Pz, 22 - 64
25BB/A
INBOX-1266-B
Fp1 - Pz, 22 - 64
25BB/B
INBOX-1266-C
Fp1 - Pz, 22 - 64
25BB/C
INBOX-1266-D
Fp1 - Pz, 22 - 64
25BB/D

Cross reference table INBOX


Braintronics address
