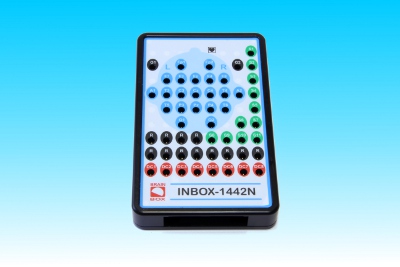

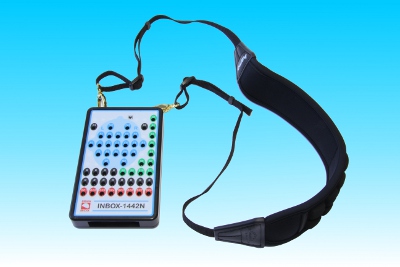

INBOX-1442N.

General.



These detachable touch proof input boxes are used with the EEG-1042 amplifier (version with an MDR 50 connector)



Use cable type 71BA to connect the INBOX-1442N to the EEG-1042 amplifier.


INBOX-1342 bottom side



INBOX-1442N specifications.

Inbox

Separate headbox for connection to EEG-1042 (with NDR 50 connector)

Vinkje
Touchproof EEG sockets
32
Touchproof DC sockets
8
Touchproof Gnd sockets
12
G1/G2 sockets
2
BRAINBUS address coding possibilities
n.a.

Code number INBOX-1442N

Address type
Channel range
order number
INBOX-1442N
1 - 42
34BB

Cross reference table INBOX


Braintronics address
