INBOX-1242.
|
INBOX-1242. |
General.

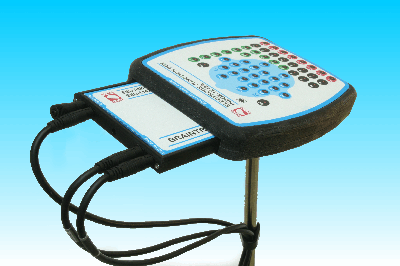

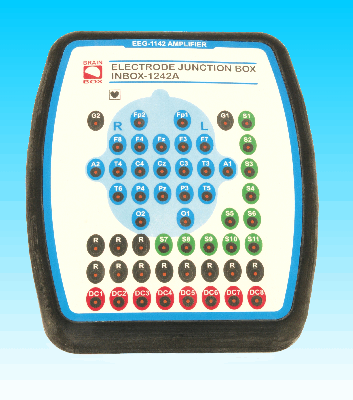

The INBOX-1242 is used with the small ambulatory EEG amplifier EEG-1142 to convert it in a system for stationary routine EEG use. The EEG-1142 amplifier is inserted in the top of the INBOX-1242 as shown on the photogragh. With the optional mounting block type 28BA, the INBOX-1242 can be fixed on a standard microphone stand. For one patient, you use the INBOX-1242A. The 2nd patient connected to the same PC uses INBOX-1242B. The photo at the bottom right show the INBOX-1242 top rear and bottom side. |
 |
 |
INBOX-1242 specifications.
| Inbox | |
| Holding place for amplifier in the box |  |
| Mountable on microphone stand | |
| Touchproof EEG sockets | 32 |
| Touchproof DC sockets | 8 |
| Touchproof Gnd sockets | 11 |
| G1/G2 sockets | 2 |
| BRAINBUS address coding possibilities | 2 |
| Channel Identification type A (Address 1) | Fp1- Pz S1 - S11 DC1- DC8 |
| Channel Identification type B (Address 2) | Fp1- Pz S1 - S11 DC1- DC8 |
Code number INBOX-1242
Address type |
Channel range | order number |
|---|---|---|
| INBOX-1242-A | Fp1- Pz,
S1 - S11,
DC1- DC8 |
24BB/A |
| INBOX-1242-B | Fp1- Pz, S1 - S11, DC1- DC8 |
24BB/B |
