EEG-1042 amplifier.

General.

This EEG Amplifier for stationary use is functionally identical to a system with a mini amplifier EEG-1142. The EEG-1042 has the galvanic isolation and the Touchproof input box built-in and is mountable on a microphone stand using an optional fixation block. Additionally, it has an LED panel for impedance check of all electrodes, with override mode. The operator can correct electrodes without walking to the PC to see if their resistance is low enough. An extra BRAINNET connector is provided on the EEG-1042 for easy connection of a BRAINBOX photic stimulator. As with the EEG-1142, additional amplifiers model EEG-1166 can be added to the system, with an ISO-101 isolator, to increase the number of channels to 224 EEG, 8 DC, SpO2 and Event.

Two EEG-1042 amplifiers can be connected via a single ETHERNET-102 interface to record two patients on one PC.

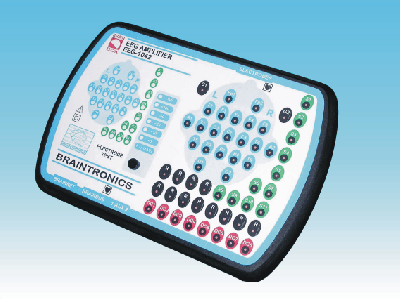

  BRAINBOX 1042 amplifier
Braintronics order number
:
10BB

Amplifier specifications.

BRAINBOX® EEG-1042 Amplifier
Designed for stationary routine EEG and sleep
vinkje
Mountable on a microphone stand
vinkje
Designed for maximum system flexibility regarding EEG- and DC channels
vinkje
EEG Channels have digital FIR filter with linear phase and -40 dB at 1/2 sample rate
32
DC channels
8
G1/G2 active Gnd. for suppression of mains interference in noisy environments
vinkje
Multipin connector for direct Electrode Cap connection
40 pin
Integrated Touchproof connectors
vinkje
Separate SpO2 channel with optional Nonin X-pod
vinkje
Separate EVENT
vinkje
Power and control over BRAINNET Connection. Medium voltage power supply (24 V dc)
vinkje
Extra BRAINNET connector for Photic Stimulator
vinkje
Fixed device addresses
2
Real input calibration, calibration voltage is applied to electrode input
vinkje
Electrode impedance check with indication in EEG application running on PC
vinkje
Electrode impedance check activated from amplifier by button, which is also used to select LED, indicated level
vinkje
Integrated ISOLATOR
vinkje
Extended Brainbox protocol
vinkje
