INBOX-1342.

General.

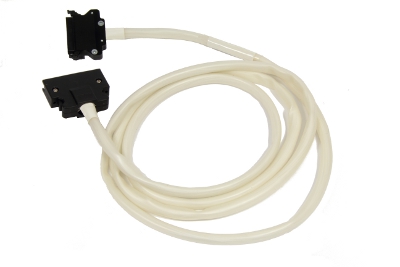

These touch proof input boxes are used with the large EEG-1042 amplifier (needs a special type of connector) in cases where the electrodes are attached during the day and the patient freely walks around with the INBOX-1342 until it’s sleeping time. Then, the very flexible round cable (type 46BA) is connected to the EEG-1042 amplifier for recording during sleep.

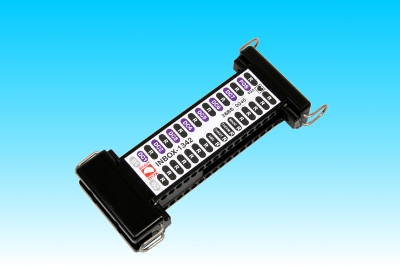

INBOX-1342 bottom side
INBOX-1342 bottom side



INBOX-1342 specifications.

Inbox

Separate headbox for connection to EEG-1042 (with special connector)

Vinkje
Touchproof EEG sockets
32
Touchproof DC sockets
8
Touchproof Gnd sockets
26
G1/G2 sockets
2
BRAINBUS address coding possibilities
n.a.

Code number INBOX-1342

Address type
Channel range
order number
INBOX-1342
1 - 42
26BB

Cross reference table INBOX


Braintronics address
