INBOX-1064.
|
INBOX-1064. |
General.

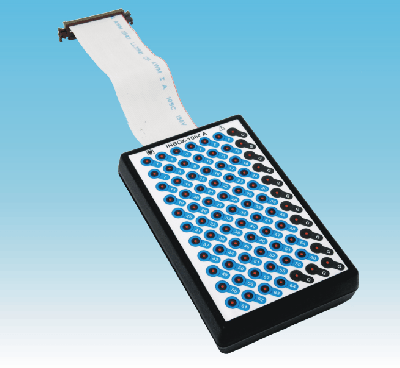

The INBOX-1064 is a separate input box for the BRAINBOX® mini EEG Amplifiers. It is connected to the EEG-1164 via a flat cable. The INBOX-1064 offers more flexibility than the clip-on INBOX-1164, like in a setup with a switchbox between the patient and the amplifier for electrical epilepsy stimulation with implanted electrodes. The INBOX-1064 is available with encoding for 4 BRAINBUS Device addresses (channel ranges). |
 |
INBOX-1064 specifications.
| Inbox | |
| Large box connectable via flat cable | • |
| Touchproof EEG sockets | 64 |
| Touchproof Gnd sockets | 4 |
| BRAINBUS address coding possibilities | 4 |
| Channel Identification type A (Address 1) | 1-64 |
| Channel Identification type B (Address 2) | 65-128 |
| Channel Identification type C (Address 3) | 129-192 |
| Channel Identification type D (Address 4) | 193-256 |
Code number INBOX-1064.
Address type |
Channel range | order number |
|---|---|---|
| INBOX-1064-A | 1 - 64 |
8BB/A |
| INBOX-1064-B | 65 - 128 |
8BB/B |
| INBOX-1064-C | 129 - 192 |
8BB/C |
| INBOX-1064-D | 193 - 256 |
8BB/D |
Code number 68-pin flat cable for INBOX-1064.
Address type |
Length | order number |
|---|---|---|
| 68-pin flat cable | 15 cm |
|
| 68-pin flat cable | 1 mtr |
