INBOX-1164.

General.

These touchproof input boxes are used with BRAINBOX® EEG-1164 amplifiers. The input box is placed over the amplifier resulting in a very compact module with a size of 9.5 x 11 x 3 cm (inclusive amplifier) These inboxes are available in 4 different address types.

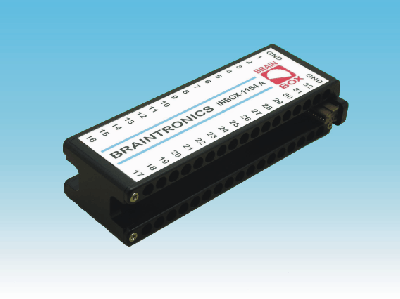

  INBOX 1164



INBOX-1164 specifications.

Inbox
Clip-on for smallest size possible
Touchproof EEG sockets
64
Touchproof Gnd sockets
4
BRAINBUS address coding possibilities
4
Channel Identification type A (Address 1)
1-64
Channel Identification type B (Address 2)
65-128
Channel Identification type C (Address 3)
129-192
Channel Identification type D (Address 4)
192-256

Code number INBOX-1164

Address type
Channel range
order number
INBOX-1164-A
1 - 64
2BB/A
INBOX-1164-B
65 - 128
2BB/B
INBOX-1164-C
129 - 192
2BB/C
INBOX-1164-D
193 - 256
2BB/D

Cross reference table INBOX


Braintronics address
