Software Demo program.

The program 'Source Code Demo' is a simple program that will give the software designers a impression how to make software to interface the BRAINBOX® system. There is a downloadable version available with only the executable an a version with the executable and the source code include. The source code is written in DELPHI V7 and Delphi 2009 . The source code contains extra comment to give the software designer a first idea how to make software for the BRAINBOX® ETHERNET-102 (V2) Interface. The code is simple and I think easy to port to the C - language.

The program used only the basic functions of the BRAINBOX® Software Protocol V1.0 (frames) to make contact with the ETHERNET-102 (V2) Interface or with a Virtual amplifier.

In basic the next actions must be done.

Set the network parameters for the Virtual Amplifier.
- Select the IP-address.
- Select the Port number.
- Select a amplifier to simulate.
  - EEG-1164 amplifier. (use the Virtual Amplifier VA-1166 for simulation)
  - EEG-1042 amplifier. (use the Virtual Amplifier VA-1042 for simulation)
  - EEG-1142 amplifier. (use the Virtual Amplifier VA-1166 for simulation)
  - EEG-1166 Amplifier. (use the Virtual Amplifier VA-1166 for simulation)

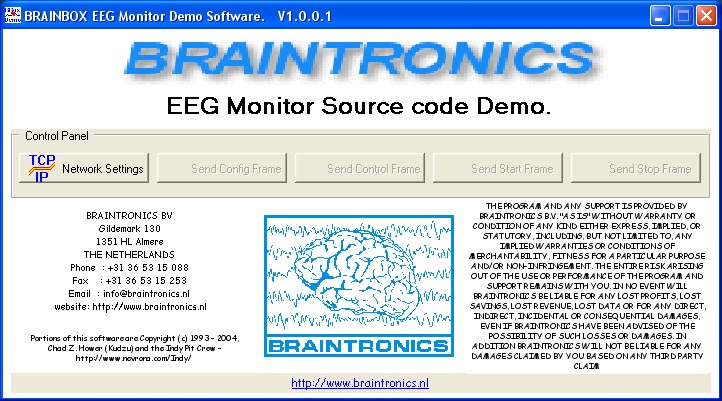

Make a connection with the Virtual Amplifier.
- Press the connect button.
Sent a configuration frame to the interface.
Sent a control frame to the interface.
Sent the start frame to the interface.

It is important to start-up the right Virtual Amplifier for the selected Amplifier in this demo program. The VA-1166 is a multi functional Virtual Amplifier that can simulate all the types of amplifiers for the EEG-channel functionality.

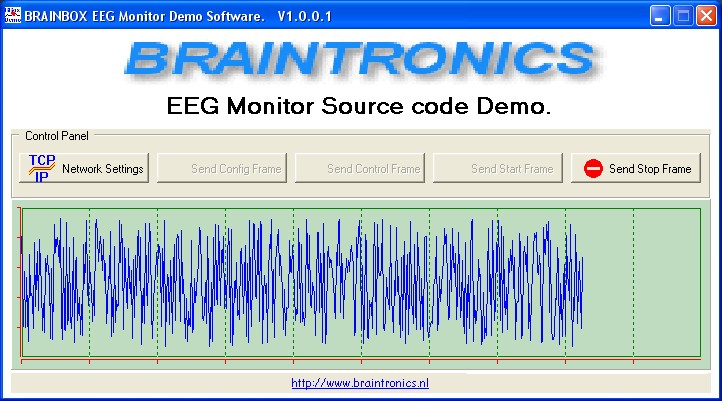

After a connection is established the demo program can show one EEG-channel in a simple graphic window.

A more detailed explanation of the demo program and extra comment for the source code can be found in this document.

Download the software.

For installation of the software a Install Shield Wizard is used. The table below contains two versions of the Source code. In the left column a link is placed to the source files for a Delphi 7 compiler. The middle column shows the files for Delphi 2009. The main difference between the two source files is the use of a TCP/IP Indy 9 component in Delphi 7 and a Indy 10 component in Delphi 2009. The structure is the same only a small syntax differend.

Delphi 7	Delphi 2009	Executables
		Software Demo (only the executable)
		The Complete demo with source includes in a setup.exe file
		Source code in text format.
		EEG_MonitorDemo.dpr (delphi project file)
		EEG_Monitor.pas (main program file)
		EEG_Monitor.dfm (delphi form file)
		TCPIP_Client_control.pas
		TCPIP_Client_control.dfm (delphi form file)
		NetworkProtocol.pas
		SignalChannel.pas
		Source code components (shareware)
		ALed.pas
		IPEdit.pas

For all programs and source code:
( not the shareware components )
