Change UART Settings tool

BRAINBOX RS-232 Serial Terminal for Ethernet 102 (V2) Interface.

The UART functionality in the Ethernet-102 (V2) Interface is a special option and only inplemented on customer request. The Ethernet-102 (V2) interfaces that support this functionality have an extra connector for the serial signals to interface.

The program 'EEG_Serial_Monitor.exe' is a simple tool that will give the software designers the possibility to communicate with this application via the UART in the Ethernet 102 (V2) Interface to a connected device on the special serial interface connector. The Ethernet 102 (V2) Interface must be connected to the PC-network and the power must be on. It is not permitted that there is already a connection made by an another program to the same Ethernet 102 (V2) Interface.

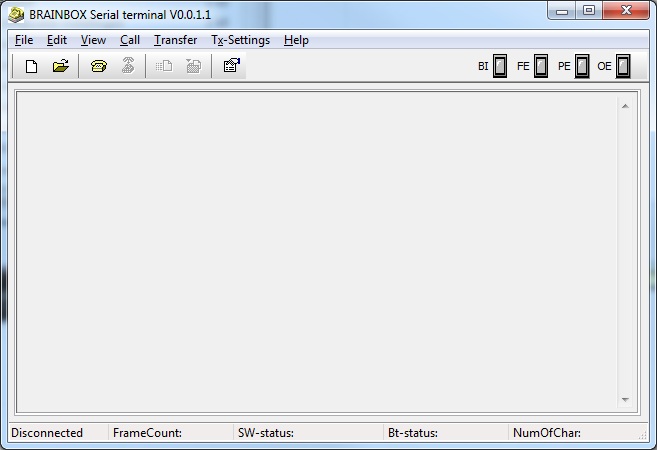

The program start with a general screen. First a connection must be made to the Ethernet-102 (V2) Interface by pressing the most left button of the button bar.

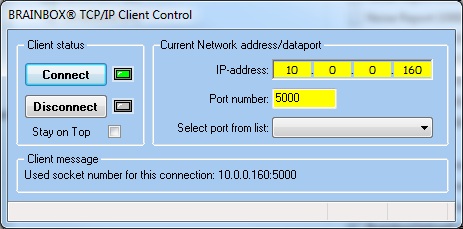

In the TCP-IP connect screen the correct IP-address and port number of the Ethernet-102 (V2) Interface must be fill in. After pressing the 'Connect' button the program try to find the network device by pinging this address.

By default the Ethernet-102 (V2) Interface is pre-programmed on IP-address 10.0.0.160.

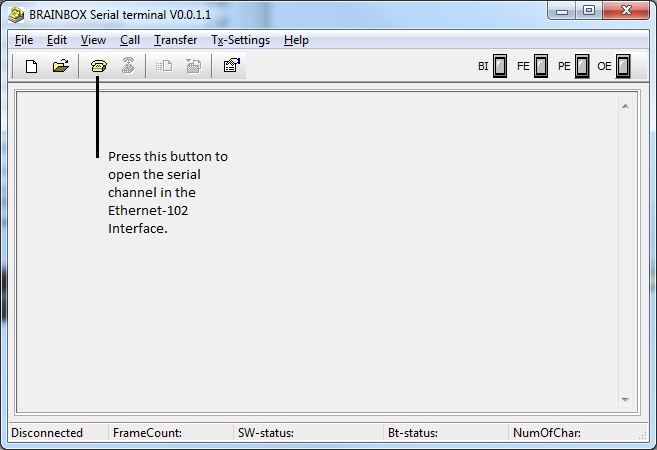

Press the button (see below) to open the serial channel in the Ethernet-102 (V2) Interface. Now there is communication possible to the serial channel.

For more information see the help of the application in the main menu bar.

Download the software.

For installation of the software one file is needed. With this file the application will be installed.

Executables
	Brainbox RS232 Terminal.exe

For all programs and source code:
