Network setup for Ethernet-102 Interface

Network setup for Ethernet-102 (V2) interface.
The Ethernet-102 (V2) interface don't support DHCP services. The IP address used by the Ethernet-102 (V2) interface is always fix. (by default 10.0.0.160) If the Ehternet-102 (V2) interface will be connected to a network with DHCP services and the default IP address of the interface is in the DHCP-range you get problems with your network. The best solution is to use the Ethernet-102 (V2) Interface in a 'point to point' connection to a PC without other network devices. In a 'point to point' connection no DHCP service is active so the PC and the Ethernet-102 (V2) Interface can use both a fix IP address.

Procedure to set your PC to a fix IP-address.

First select the MyNetwork settings icon on your desktop.

Select the properties of this icon with the right mouse button. Then you get a dialog with network connection like this.

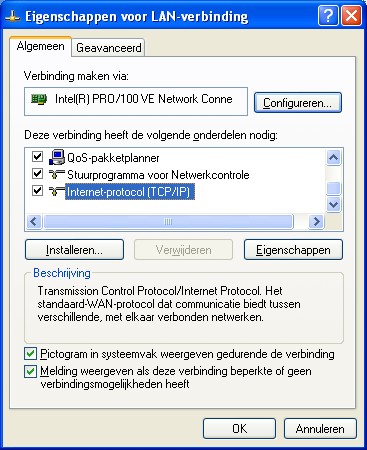

Select the properties of this LAN-connection icon by pressing the right mouse button.



Select the Internet-protocol (TCP/IP) component an press the property button below the list box.

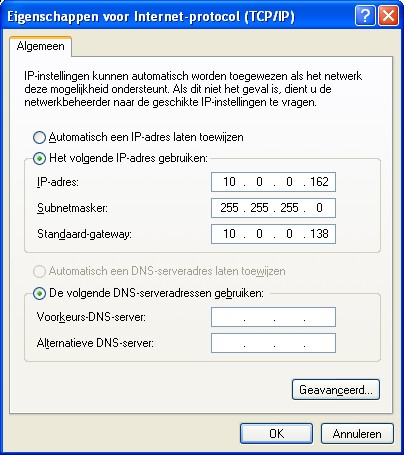

For a *'point to point'* connection you need a fix IP-address. Select the second option. Fill-in then IP-address for the used PC. The IP-address needs to be different from the IP-address of the Ethernet-102 (V2) Interface. In our case different for 10.0.0.160. Set the Subnet mask to 255.255.255.0 Set the standard gateway to 10.0.0.138 DNS support is not needed, so don't fill-in anything here.

Press the OK-button and close all the dialogs related to the network settings. Now it must be possible to make a connection with the Ethernet-102 (V2) Interface. Use for the phisical connection between the PC and the Ethernet-102 (V2) interface a CAT-5 cross cable.
