Substitute DiGi-IN into an EEG-Channel.



It is with the EEG-Monitor (from Version V1.10.2.2) possible to substitute the status of the DiGi-In inputs of the Ethernet-102 Interface to a pre-selected EEG-Channel. The substitution is only possible into the channels of the first Amplifier in the configuration. With a dialog box it is possible to make a selection of which EEG-channel will be used.

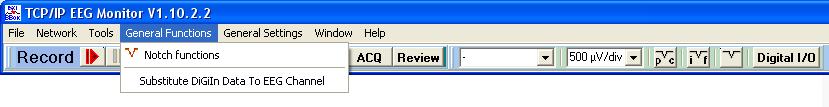

First select the substitution function from the main menu 'General Functions'



Press the menu-item 'Substitute DiGiIN Data to EEG Channel'


Now select the EEG-channel that must be replaced by the DiGi-IN data. If needed change the Button text of the graphic screen with the edit-field 'Edit Button Text'. The last action is to make the selection active by clicking the checkbox left in the dialog.

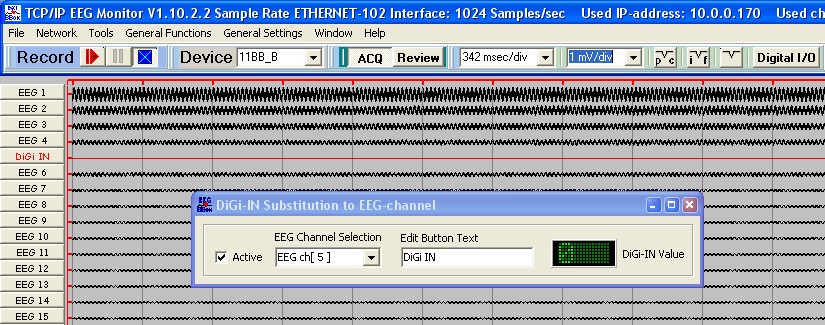

The result is that EEG channel 5 is replaced by the DiGi-IN data. The button text on the graphic screen is changed and the trace color is red. The LCD indicator in the dialog will give the actual status of the DiGi-In inputs (in the range of 0..255) of the Ethernet-102 Interface.

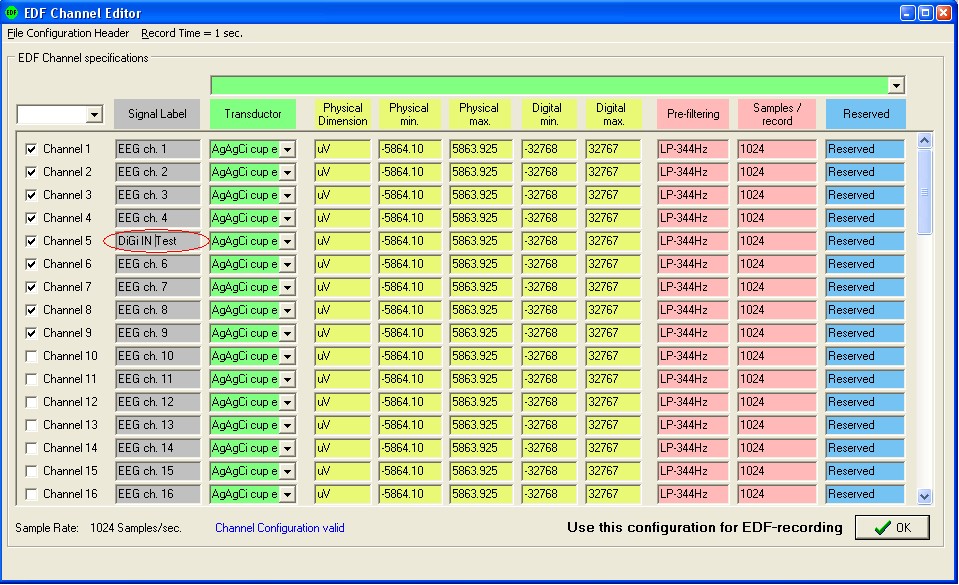

If the recording data will be store in EDF-data format the channel label of channel 5 can be change during definition of the channel selection for the EDF registration. In this dialog it is possible to change the signal labels of the channels.
