ETHERNET-102 Interface.

General.

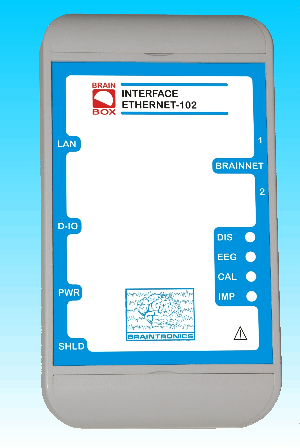

The ETHERNET-102 is the universal network interface for all our BRAINBOX® amplifiers. It CONNECTS to an RJ45 wall outlet of your LAN or directly to the Ethernet adapter of your PC. The two BRAINNET inputs connect to one or two amplifiers and a stimulator and provide the 24V power and data communication to the rest of the system. The box is wall mountable with hidden screws and has colored LED’s as status indicators to recognize from a distance if it’s in the right mode. The 8 bits digital input and 8 bits digital output via a multipin connector give extended possibilities of interfacing status, marker and sync signals with the PC application.
		Braintronics order number : 7BB

ETHERNET-102 Interface specifications.

The ETHERNET-102 Interface has the following main characteristics:

• 100 Mbit capability.
• Ethernet TCP-IP protocol.
• User programmable IP address, gateway and mask.
• Proprietary BRAINBOX® Protocol for control of system and data transport of acquired data.
• 2 BRAINNET connections.
• General purpose 8 bit digital input.
• General purpose 8 bit digital output.
• FIFO buffer.
• LED indications for operating mode of system.
• Normal data acquisition input rate of 1024 samples/sec.
• Down sampling with FIR filter to 512, 256 and 128 samples/sec.
• Selectable 50 Hz or 60 Hz Notch filter for mains interference suppression.

Factory defaults for the interface are:

Extra information:

• Characteristics of Digital NOTCH filter of this interface.
• Ground Cable for Ethernet 102 Interface.
